eMobility is the future! 10 years experiences of EV Charging Solution. Quality, Stable and reliable!
2 Years
| Ask Lasest Price | |
| Model Number : | EV3PA |
| Brand Name : | Evoyage |
| Supply Ability : | 10000 Piece/Pieces per Week |
| Price : | Negotiable |
| Delivery Time : | 7-15 working days |

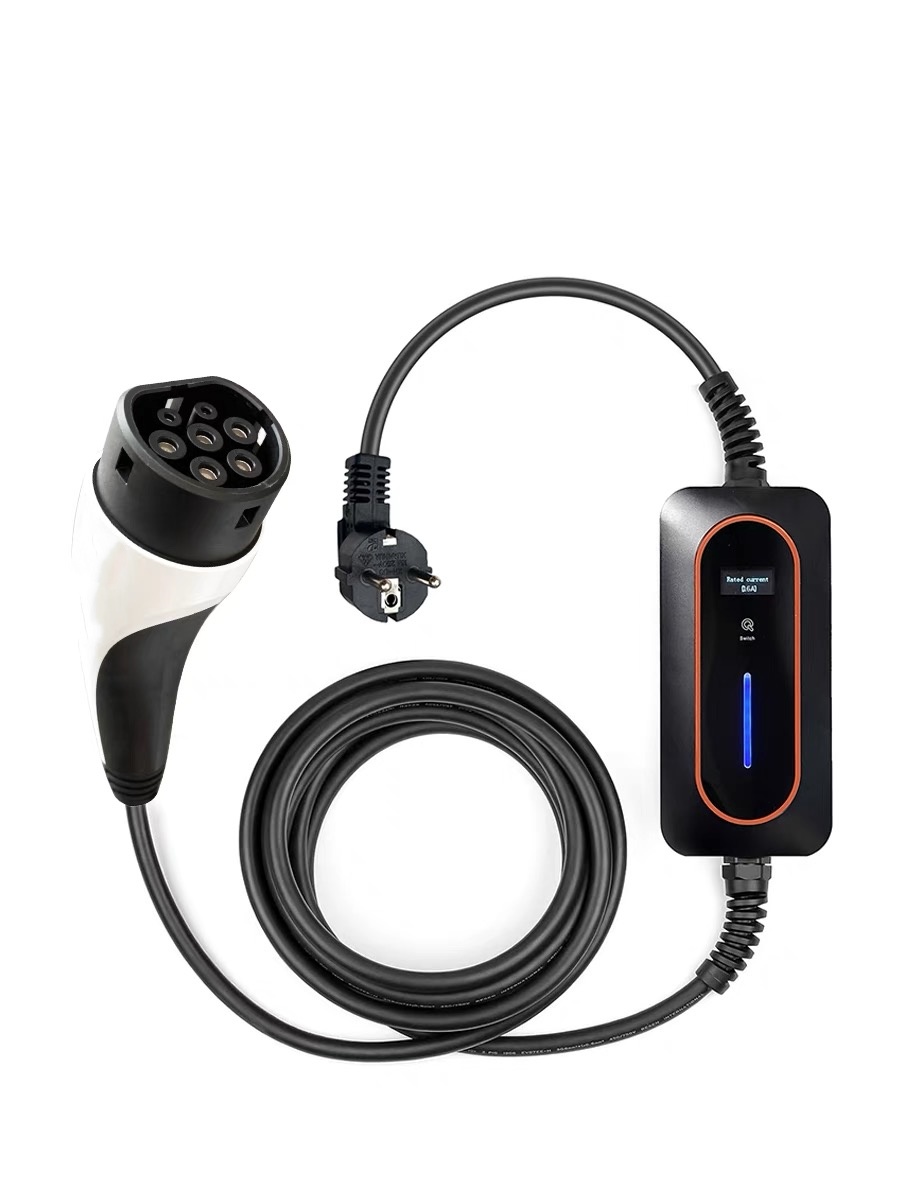

Portable EV Charger 16A 32A Mobile Electric Vehicle Car Charger Type 1 Type 2 EV Charging Cable Level 2 EV Charger
Product name | Mode 2 EV Charger Portable Electric Vehicle Charger Type 1 Type 2
EV Charging Cable Mobile Level 2 EV Charger |
Voltage | 230V |
Current | 8A/10A/13A/16A/32A adjustable |
DURABILITY | With an IP54 rating, the adapter is protected from water sprays,
making it suitable for charging outdoors. |
Application | To let a Type 2 & Type 1 car charge at home or anywhere as a power
socket |
Less Time ChargingOur portable electric car charger charges your vehicle 4x faster than a standard 8A level 1 car charger. Power Plug: Schuko Power: 3.3 kW Max. | Fully Security ProtectionsA level 1+2 electric car charger can charge with peace of mind with a built-in intelligent chip. Such as lightning / leakage / grounding protection, etc. | Easy to UseThe LED indicators allow you to take a quick glance to view the charging status. The control box is made of PC plastic material, fireproof grade rubber shell(UL94V-0). |
| Schuko Plug Type2 EV Charger 8-16Amp 5M - LCD | Schuko Plug Type2 EV Charger 16Amp 5M - LED | Schuko Plug Type1 EV Charger 8-16Amp 5M - LCD | Schuko Plug Type1 EV Charger 16Amp 5M - LED | Schuko Plug GBT EV Charger 16Amp 5M - LED | |
|---|---|---|---|---|---|
| Max. Output Power | 3.3kW | 3.3kW | 3.3kW | 3.3kW | 3.3KW |
| Charger Type | Portable Charger with Digital LCD Screen | Portable Charger with Digital LED Screen | Portable Charger with Digital LCD Screen | Portable Charger with Digital LED Screen | Portable Charger with Digital LED Screen |
| Length | 5 Metres | 5 Metres | 5 Metres | 5 Metres | 5 Metres |
| Rated Voltage | 110V to 240V 1 phase | 240V 1 Phase | 110V to 240V 1 phase | 240V 1 Phase | 240V 1 Phase |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Charging Socket | Schuko to Type 2 | Schuko to Type 2 | Schuko to Type 1 | Schuko to Type 1 | Schuko to GBT |
| Charging Options | 8A to 16A adjustable | Fixed 16A | 8A to 16A adjustable | Fixed 16A | Fixed 16A |
Outstanding points for this EV charger
1. when choosing a charger, safety is your first consideration. This EV charger has already passed all the tests of
TUV CE. which includes safety setting with lightning protection /
overvoltage / overcurrent / overtemperature and leakage protection,
adopts type A +DC6ma EU standards, so it is much safer than other ordinary EV chargers.
2. maximum charging speed is 3.3kW-h for daily use. Slow charging can extend the battery life, if you have engouh
time, please choose the slow charger instead of supercharger. And
it is a portable EV charger, you can carry it with you when
traveling instead of spanding your time to find supercharger
station.
3. current adjustable and memory function: 8A 10A 13A 16A 32A adjustable, EV charger with momory function, can remember the current of last time. If you choose 8A, the next time will also be 8A.
4.New timer function: with 1 to 10 hours start charging later appointment function, you can start charging when the electricity price is lower. come home 20:00, but want to charge 23:00, so set charging 3 hours later. Very useful function!
Specification:
Input power: 110V to 240V 1 phase
Current: With LCD display Current: 8A to 32A adjustable；With LED
display Current: Fixed 16A or 32A
Connection type: Type2/IEC 62196/Type1/SAE J1772/GBT 20234
Phases: 1
Total length: 5/10 meters
RCD: Type A AC RCD+DC RCD
Operating temperature: -30°C - +50°C
Storage temperature: -40°C - +80°C
Protection class: cable box: IP65, type 2 charging plug: IP55
Contact socket: copper alloy, silver + thermoplastic on the top
side
Impact from external force: can be 1m drop and 2t
Withstand vehicle overpressure
Housing fire protection class:UL94V-0. Makes charging easy and
safe!
|
|
