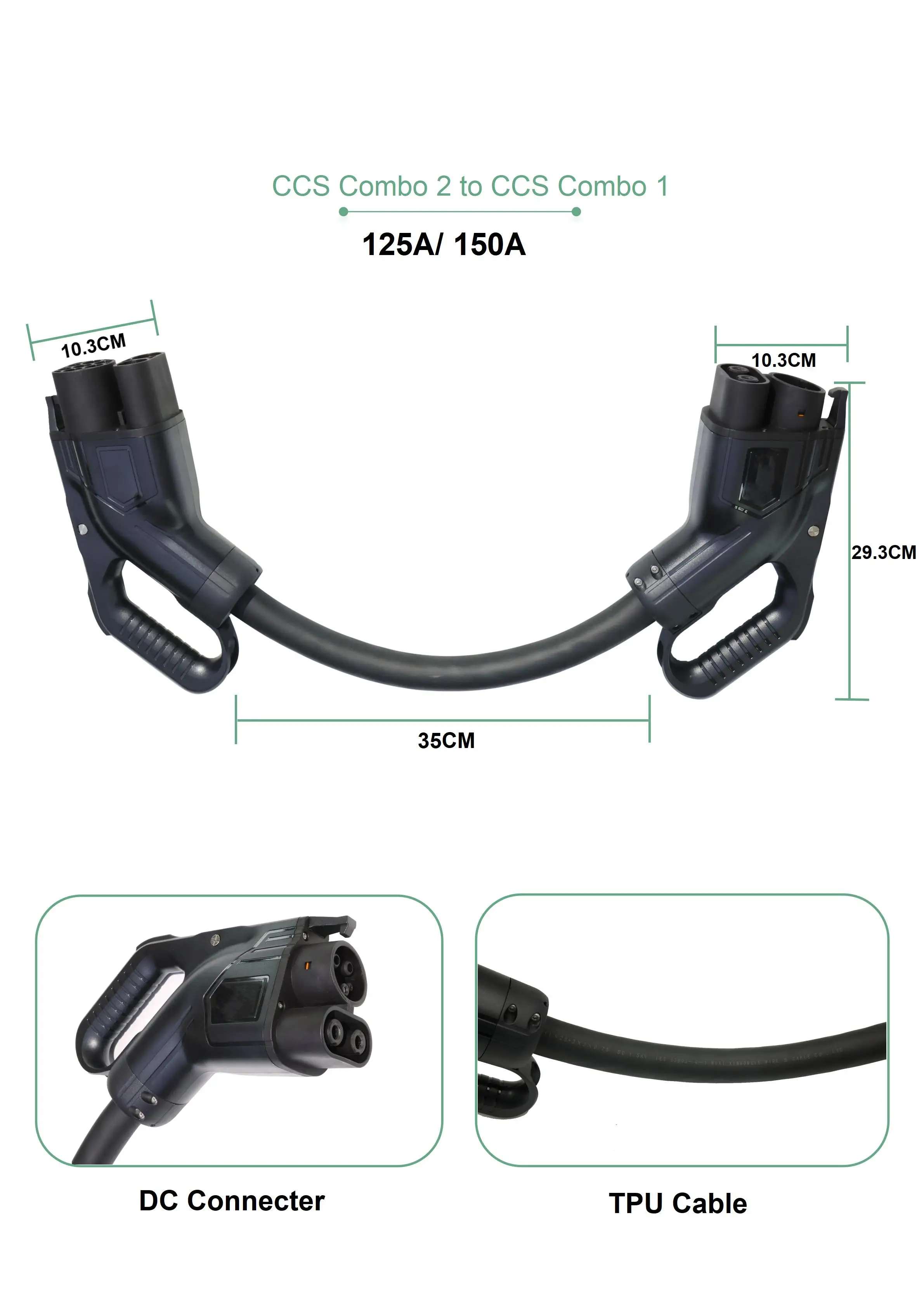

    CCS Combo 2 to CCS Combo 1 DC EV Adaptor 150A 1000V DC Fast Charging CCS2 To CCS1 Connector With 0.35M Cable For J1772 C

    Ask Lasest Price
    Brand Name : Evoyage
    Model Number : EVCCS12AD
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

    CCS Combo 2 to CCS Combo 1 DC EV Adaptor 150A 1000V DC Fast Charging CCS2 To CCS1 Connector With 0.35M Cable For J1772 C

    CCS Combo 2 to CCS Combo 1 DC EV Adaptor 150A 1000V DC Fast Charging CCS2 To CCS1 Connector With 0.35M Cable For J1772 Cars

    EV Adaptor 150A 1000V CCS2 to CCS1 Adapter for DC Fast Charging Station

    Model selection and the standard wiring

    Rated Power:150KW

    150A 1AWG*2C+6AWG*1C+20AWG*6C


    Rated voltage:1000 DC
    Rated Current:150A
    IP protection class:IP 55 ( working condition)

    Product description:

    This CCS Combo 2 to CCS Combo 1 adapter is specifically for European and American markets’ Drivers.

    When there are CCS Combo 2 EV Chargers around them and their EVs are from American Standard (SAE J1772 CCS Combo 1), they need to use CCS Combo 2 to converter to CCS combo 1 to charge their EVs.

    So the CCS2 to CCS1 Adapter will help EV drivers to use CCS Combo 2 EV charger to charge the SAE J1772 CCS Combo 1 EVs.

    Certifications:CE/ TUV/RoHS

    CCS2 to CCS1 Adapter Features

    • This CCS2 to CCS1 adapter is safe and easy to use
    • This EV Charging Adapter with built-in thermostat prevent over-heat case damage to your car and adapter
    • This 150KW ev charger adapter is with self-lock latch prevent plug-off while charging.
    • The max charging speed for this CCS2 fast charging adapter is 150KW, fast charging speed.

    The Application Scenarios

    If you have a electric car with CCS combo 1 also known as CCS1/(US Standard) but the charging stations around you are with CCS2(European Standard) How can you charge your car? This CCS2 to CCS1 adapter can help you. this 150A 1000V 150KW CCS2 to CCS1 EV Charging Adapter is designed to help CCS1/US standard cars to charge on CCS2/European Standard charging stations.

    CCS2 to CCS1 Adapter Features

    Connector Type:Application:Adapter
    Color:BlackContact Finish:Silver Plating
    Rated Type:DCShell Material:Themoplastic
    Contact Material:Copper Alloy

    Electrical

    Rated Current:150ARated Voltage:1000V
    Contact Resistance:0.5MΩ MAXInsulation Resistance:
    Withstand Voltage:2000VPower:150KW

    Standards and Specifications

    Charging Standards:IEC 62196-3

    Environmental

    Flammability:UL94 V-0Operating Temperature:-30℃~50℃
    Ingress Protection:IP55

    Mechanical

    Mating Cycles:≥10000

    How to use:

    We recommend using the following steps:

    1. Plug in the Combo 2 end of the adapter to the charging cable

    2. Plug in the Combo 1 end of the adapter to the car’s charging socket

    3. After the adapter has clicked in place you are ready for the charge*

    *Don’t forget to activate the charging station

    When you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the cable from the charging station when not in use.
