eMobility is the future! 10 years experiences of EV Charging Solution. Quality, Stable and reliable!
2 Years
| Ask Lasest Price | |
| Brand Name : | Evoyage |
| Model Number : | Evo7WB |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union, Paypal, Alipay, Cash |
| Supply Ability : | 5000 Piece/Pieces per Week |
| Delivery Time : | 350(H) × 240(W) × 95(D)mm; 6/8Kilograms |
16/32A IEC 62196-2 1/3 Phase Wallbox EV Charging Station 22KW/11KW/7KW Type 2 5M Cable With OCPP 1.6/WIFI/4G/LAN/RFID
OCPP is the shared language spoken between open EV chargers and charging station management systems (CSMS).OCPP stands for Open Charge Point Protocol. Basically, it is an open specification for EV charging stations enabling them to communicate with a centralised management system.
It’s similar to a smart home where your light switches, air-conditioners and even garage doors are exchanging messages with your phone so that everything can be controlled from one place.
Input & Output ⚡ | ||||
Input voltage / Output voltage | 220V / 380V | Output current | 32A / 16A | |
Max power | 3.6kw/7kw / 11kw/22kw | Input frequency | 50Hz | |
Standby power consumption | <3W | Charging interface type | TYPE 1(SAE J1722), TYPE 2 (IEC 61851),GBT(20234) | |
Protection ✨ | ||||
Over-voltage protection | ✅ | grounding protection | ✅ | |
under-voltage protection | ✅ | over-temperature protection | ✅ | |
overload protection | ✅ | low-temperature protection | ✅ | |
earth leakage protection | ✅ | lightning protection | ✅ | |
Working environment + | ||||
Applicable scene | Indoor / Outdoor | Operating temperature | -40℃ ~ +65℃ | |
Height above sea level | <2000m | Operating humidity | 5% ~ 95%, non-condensation | |
Protection level | IP65 | Cooling method | Natural cooling | |
MTBF | 100,000 hours | Special protection | UV protection design | |
Appearance structure ⇔ | ||||
Shell material | Black tempered glass panel, PC body | |||
Equipment dimension | 380*240*98mm ( L*W*H ) | |||
Installation method | Wall-mounted | |||
Wiring method | Getting in and going out from the bottom | |||
Equipment weight | 8kg | Length | 5m or customized | |

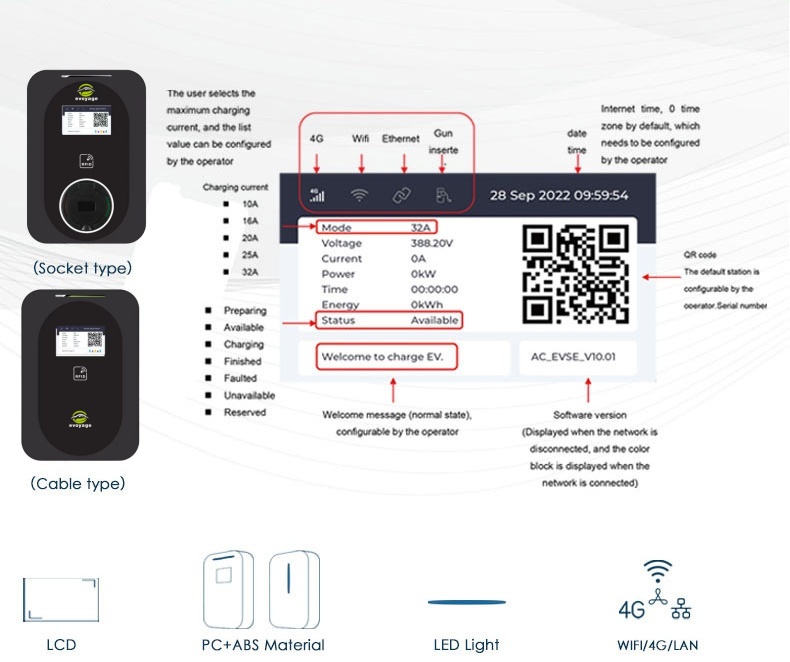

 | 1. APP Control ● Setting Current: you can set the current when the power grid is overload.The EVSE EV Charger with Mobile App allows you to monitor and manage your energy consumption and costs. With the mobile app, you can schedule charging times, set charging limits, and track your energy usage, helping you to optimize your charging process and save on costs. ● Controlling Stop & Start: Control the Stop &Start by your phone, you can control it in anywhere.The EVSE EV Charger with Mobile App allows you to control your charging process remotely, from anywhere with an internet connection. This feature gives you greater flexibility and control over your charging, allowing you to start, stop, and monitor your charging process from your mobile device. ● Booking of Charging:If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.The EVSE EV Charger with Mobile App has a user-friendly interface that makes it easy to set up and use. The app provides step-by-step instructions and intuitive controls, allowing you to quickly and easily manage your charging process. ● Record: you can check the charging record by APP in any time. ● The best Choice for home market. | |||
2. Load balance management: ● Restricting the total charging load protects the local grid ● Sharing the charging load cuts costs for the required electricity connection ● Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring,no extra infrastructure or installation costs. |  | |||
 | 3. Specification ● OEM or ODM Available:Logo, brand, design, size, color, function, etc,customization available; ● IP 65:Indoor and outdoor applications with waterproof IP65 rated ● Versatile Installation wall mount or pedestal applications ● Communication: WIFI, LAN(RJ-45),RFID,OCPP 1.6J,4G | |||
4. Protection: ● RCD TypeA inside. ● High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage Protection, Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-tempProtection, Surge Protection and etc. |  | |||
|
|
