    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug

    Ask Lasest Price
    Model Number : EV32AP
    Brand Name : Evoyage
    Supply Ability : 10000 Piece/Pieces per Week
    Price : Negotiable
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug

    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug

    Product Description

    Type 2 16/32/63A EV Single Phase Female IEC 62196-2 EV Connector For Electric Vehicle EV Charging Plug

    This type 2 female ev charging plug is suitable for self-built Mode 2 Portable EV Charger and Mode 3 EV charging cable.

    With the components offered here, you can mount a complete charging cable with self-assembly accessories.

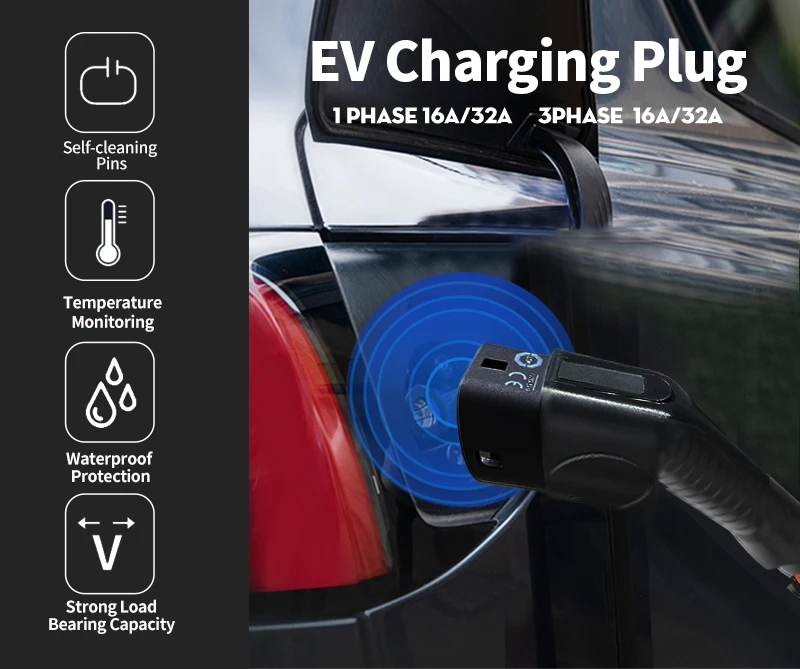

    Female Type 2 EV Charging Plug
    The plug’s robust construction and silver plated contacts assure a reliable connection. The ergonomic design and quality

    ensure that the plug can last for many years.

    · IP54 weatherproof with ergonomic handles makes the EV Charging leads easily stored

    · Designed to be used on EV charging cables with 22kW capacity

    · 32A

    · Type 2 plug designed to fit into the male EV car sockets

    · Durable casing with 12 month warranty

    · Built to last for 10,000 mating cycles

    · TUV certified cable and connectors meeting Australian and European standards


    Type 2 16/32/63A EV Single Phase Female IEC 62196-2 EV Connector For Electric Vehicle EV Charging Plug
    Product name
    Type 2 16/32/63A EV Single Phase Female IEC 62196-2 EV Connector For Electric Vehicle EV Charging Plug
    Type
    Type 2/IEC62196-2
    Operating Temperature
    -30℃ to 50℃
    IP Grade
    IP54
    Certificate
    CE & TUV Approved
    Rated voltageRated currentPowerCable size
    240 / 415V AC63 Amp 3 Phase15 / 44KW16mm²
    240 / 415V AC32 Amp 1P/3P7 / 22KW6mm²
    240 / 415V AC16 Amp 1P/3P3 / 11KW2.5mm²
    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug
    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug
    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug
    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug
    Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug
    2196-2 EV Connector For Electric Vehicle EV Charging Plug
