CHAdeMO Standard DC Fast Charging Connector 125A/150A/200A 1000V EV Plug/Socket Single-phase with 5 Meters Cable For Electric Car Accessories

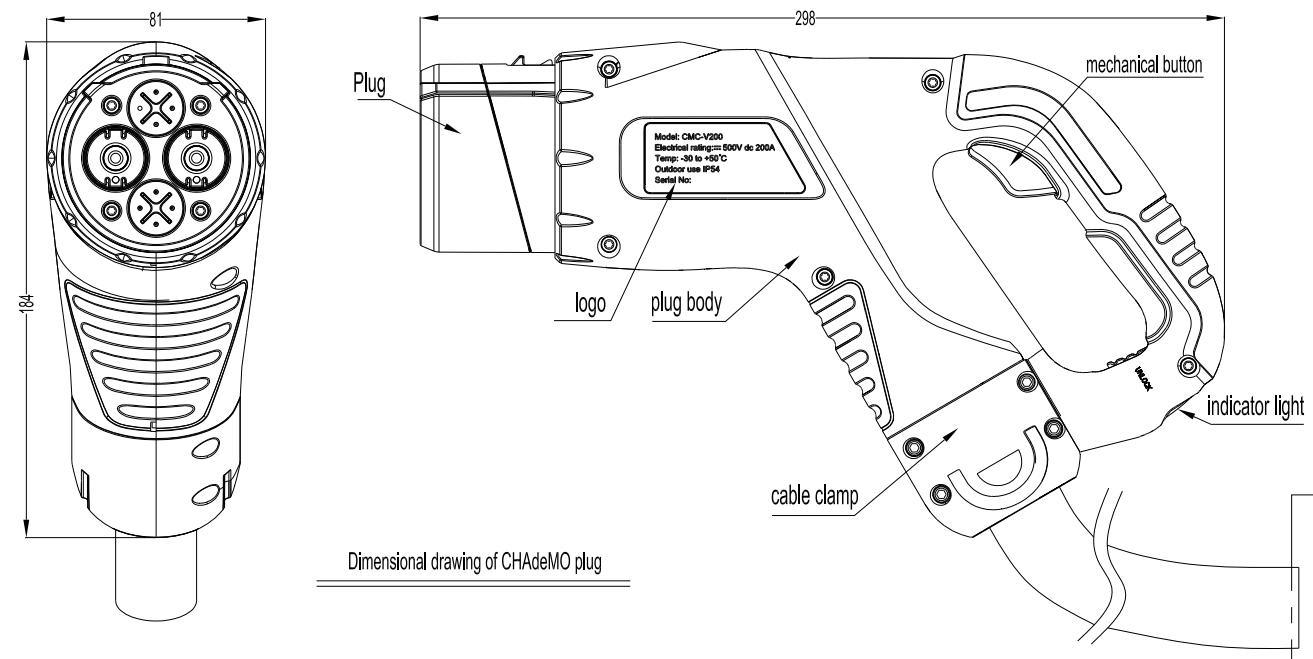

	CHAdeMO Standard DC Fast Charging Connector 125A /200A 1000V EV Plug Single-phase with 5 Meters Cable Rated current: 125A/200A Rated voltage: 1000V DC Operation Temp.:-30℃ ~ + 50℃ IP protection class: IP 55 Product description: The chademo plug is design according to the Janpan Chademo ev charging standard, have 1000V 125A and 200A available, it can install on the Chademo ev charging station to charging all the electric	Model selection and the standard wiring 125A 35mm2*2+0.5mm2*9 200A 35mm2*2+0.5mm2*9

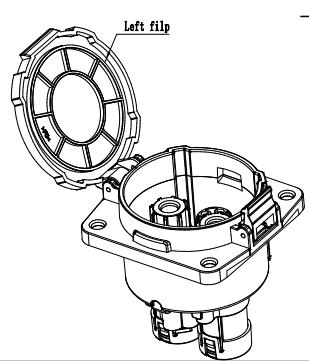

	CHAdeMO DC Fast Charging 125A/150A/200A 1000V Receptacle EV Socket Single-phase with 5 Meters Cable Rated current:125A/150A/200A Rated voltage: 1000V Operation Temp.:-30℃ ~ + 50℃ IP protection class: IP 55 Product description: The chademo socket is design according to the Janpan Chademo ev charging standard, have 1000V 125A 150A and 200A available, it can install on the Chademo ev charging station to charging all the electric	Model selection and the standard wiring 125A 2*35mm²+7*0.75mm² 150A 2*50mm²+7*0.75mm² 200A 2*70mm²+7*0.75mm²

CHAdeMO Standards DC Charging Connector

CHAdeMO is a DC charging standard for electric vehicles. It enables seamless communication between the car and the charger.
Along with CCS and China’s GB/T standard, CHAdeMO is one of the most widely used DC charging standards. It allows for seamless communication and power transfer between electric vehicles and charging stations. The CHAdeMO Association created it. This association certifies and ensures compatibility between electric vehicles and charging stations.

Safety is the most important issue in electric vehicle charging, and the CHAdeMO connector addresses this issue with its various built-in safety mechanisms. It integrates functions such as galvanic isolation, voltage detection and over-current protection to ensure safe charging operation. The connector has also undergone a rigorous testing and certification process to meet international safety standards, giving users confidence in its reliability and safety.

In terms of physical design, the CHAdeMO connector consists of a main connector plug and a vehicle charging port. The main connector plug includes the power and communication wires, while the vehicle charging port provides the interface to connect the charger to the electric vehicle. The connector is designed to be rugged and weatherproof, able to withstand a variety of environmental conditions.
