| Model Number : | EVO-CCS2-S-150A |
| Brand Name : | Evoyage |
| Supply Ability : | 10000 Piece/Pieces per Week |
| Price : | Negotiable |
| Certification : | CE |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
DC 200A 300A CCS2 Electric Vehicle Charging CCS2 EV Socket Fast Charger Connector DC
C

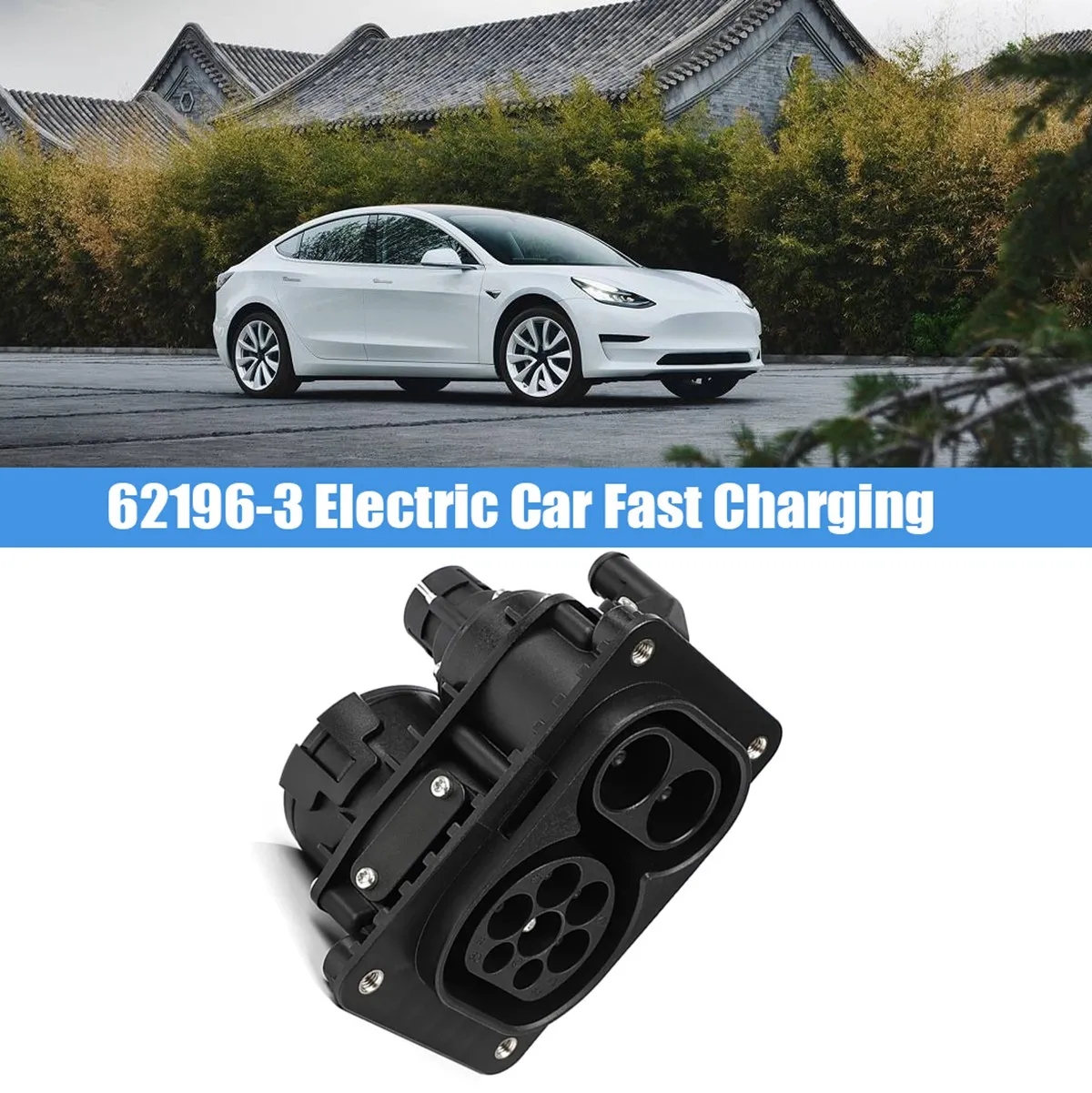

CCS 2 Socket/Inlet (EV Side)
The Combined Charging System inlet is an industry-standard vehicle
connector for convenient charging
of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs supporting
AC & DC Charging standards of Europe/ Australia and increasingly global standards
Features:
1. Meet 62196-3 IEC 2011 SHEET 3-Im standards
2. Concise appearance, support back installation
3. Contact with drainage structure, improve safety performance
4. Safety pins insulated head design to prevent accidental direct
contact with staff
5. Back protection class IP55
6. DC max charging power: 300kW
7. AC max charging power: 41.4kW
Electric Performance.
DC input: 125 / 150A / 200A 300A 1000V DC MAX
AC input: 16A 32A 63A / 415VAC MAX
DC Max charging power: 300KW
AC Max charging power: 41.5KW
Insulation resistance: >2000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3200V
Contact Resistance: 0.5m Ω Max
Mechanical Properties
Mechanical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Impact of external force: can afford 1m drop test and 2T vehicle
run overpressure
Case Material: Thermoplastic, Flame retardant grade UL94-0

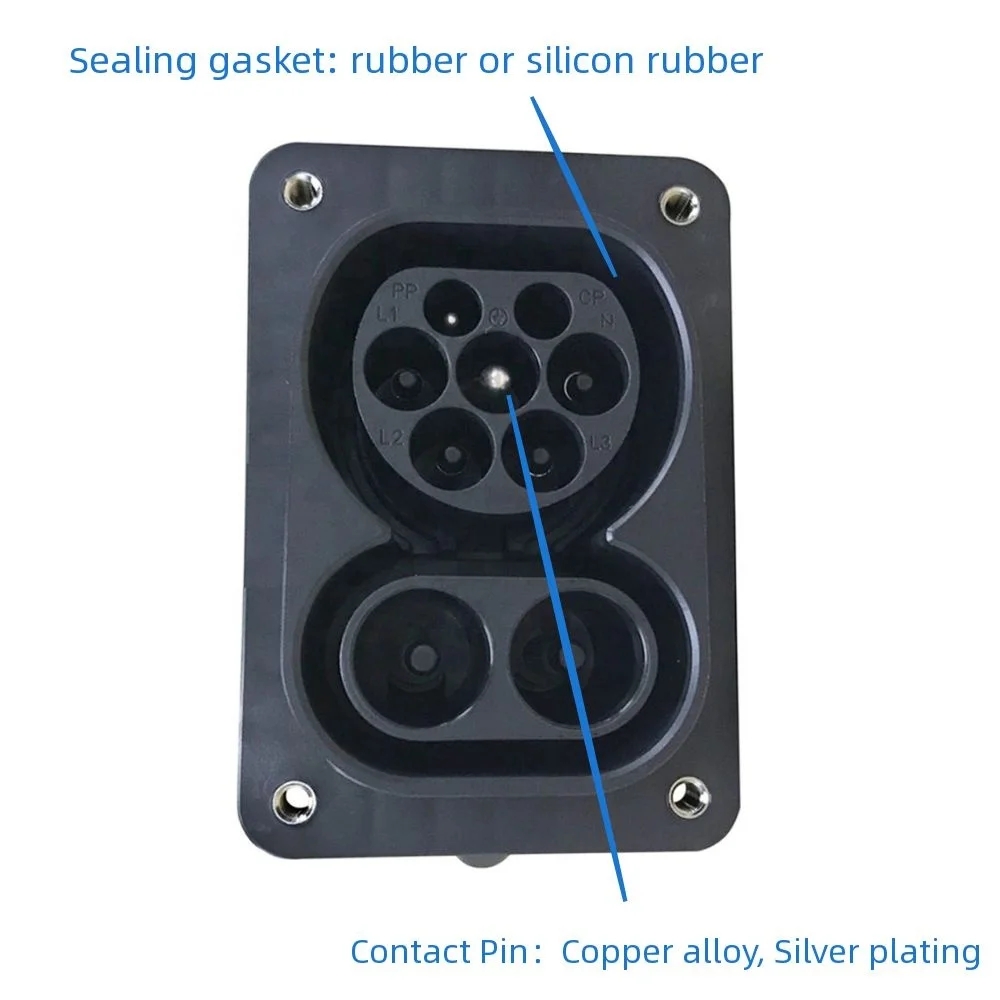

Contact bush: Cooper alloy+ thermoplastic on the top
CE & TUV approved
Environmental performance
Operating temperature:-30°C – +50°C
Electric Vehicle Charging CCS2 EV Socket 200A Combo Fast Charger Connector
|
|
