SAE J1772 EV Connector 16A 32A 40A 50A Type 1 EV Plug For US Standard Electric Vehicle Charging Station EV Cable Plug

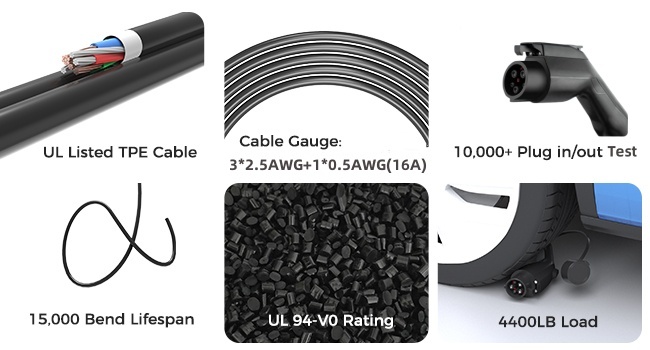

Electric Performance: Protection rank: IP65 Fire retardant level: 94 V-0 Rated Current: 16A/32A/40A/50A Rated voltage: 110V / 250V Insulation resistance: > 1000M ohm (DC 500V) Terminal temperature rise: <50K Withstand voltage: 2000V Contact resistance: 0.5m ohm Max Coupled insertion force: >45N <80N Operating temperature: -30C to 50C Mechanical Testing Mechanical life: no load plug in / pull out > 10000 times Impact of external force: qualify 1m drop or 2 Ton vehicle run over Materials Applied Connector: by copper alloy with nickel bottom plating and 3um silver surface plating Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing Cable: black with TPU jacket. Other color optional by customizing

Charge Quickly level 1 EV charger charges your vehicle quickly and effortless.	J1772 Level 1 EV Charger This EV charger fits most EVs & PHEVs, can charge any type 1 (SAE J1722) vehicle. Tesla needs adapter, otherwise this electric car charger is not suitable for tasla.	Total 5M Whether you have a garage or need to charge outdoors, the total 5M charging cable provides all the options for your daily use.

This SAE J1772 EV connector EV plug can be assembled with UL listed cable. The maximum power provided from the plug is from 16A up to 32A, 40A, 50A. It is usually used for type 1 Electric Vehicle charging staion car side cable or level 2 portable ev chargers.

The Wallbox or Portable EV chargers with SAE J1772 /Type 1 EV cable connector is compatible with all the US standard cars it is called Type 1 electric vehicles like: Citroen C-Zero, Ford Focus Electric, Mitsubishi Outlander PHEV, Kia Soul EV, Nissan Leaf 2012 – 2017, Peugeot (uses both types), Toyota Prius, Vauxhall, etc.
