NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable

Chengdu Sixpence Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable from wholesalers

    Buy cheap NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable from wholesalers
    • Buy cheap NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable from wholesalers
    • Buy cheap NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable from wholesalers
    • Buy cheap NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable from wholesalers

    NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable

    Ask Lasest Price
    Brand Name : Evoyage
    Model Number : EV32AP
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

    NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable

    NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable With Model 3/Y/S/X


    32-80A NACS EV Connector for Level 2 EV Charging

    • Rated current: 32/40/50/60/80A
    • Rated voltage: 110/240V AC
    • Operation Temp.:-30℃ ~ + 50℃
    • IP protection class: IP 55 ( working condition)
    • Product description: Our new NACS AC charging cables, customizable to fit all your charging needs. Whether you are looking for 32A, 40A, 50A,60A or 80A options, we have you covered. Our NACS AC charging cables are designed
    • Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier.

    • Features

    Charging plug meeting Tesla NACS standard

    Housing massive structure promote protection performance

    Product entire insertion and extraction force<90N

    Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.


    • Mechanical properties

    Mechanical life:no-load plug in/pull out>10000 times

    Impact of external force:can afford 1M drop and 2t vehicle run over pressure


    • Applied Materials

    Case Material:Thermoplastic,flame retardant grade UL94V-0

    Contact bush:Copper alloy,silver plating

    UV Resistance:F1 per UL 746C

    Product Details:

    ProductTesla AC Plug with Cable
    Product ModelEVO-TSA-32A , EVO-TSA-40A , EVO-TSA-50A, EVO-TSA-60A,FV-TSA-80ATerminal Rise<50K
    Rated Current32A /40A/50A/60A/80AOperating Temperature-30°C~+50°C
    Operation VoltageAC 120V / AC 240VImpact Insertion Force>300N
    Insulation Resistance>1000MΩ(DC 500V)Waterproof DegreeIP55
    Withstand Voltage2000VCable ColorBlack ,Orange, Green, Blue etc.
    Pin MaterialCopper Alloy, Silver PlatingCable Length(5Meter ,10Meter) The length of the cable can be customized
    Shell MaterialThermoplastic,Flame Retardant Grade UL94 V-0Cable ProtectionReliability of materials, anti-flaming, pressure-resistant, abrasion resistance
    Mechanical LifeNo-Load Plug In / Pull Out >10000 Timesimpact resistance
    Contact Resistance0.5mΩ MaxCertificationUL,TUV,CE Approved

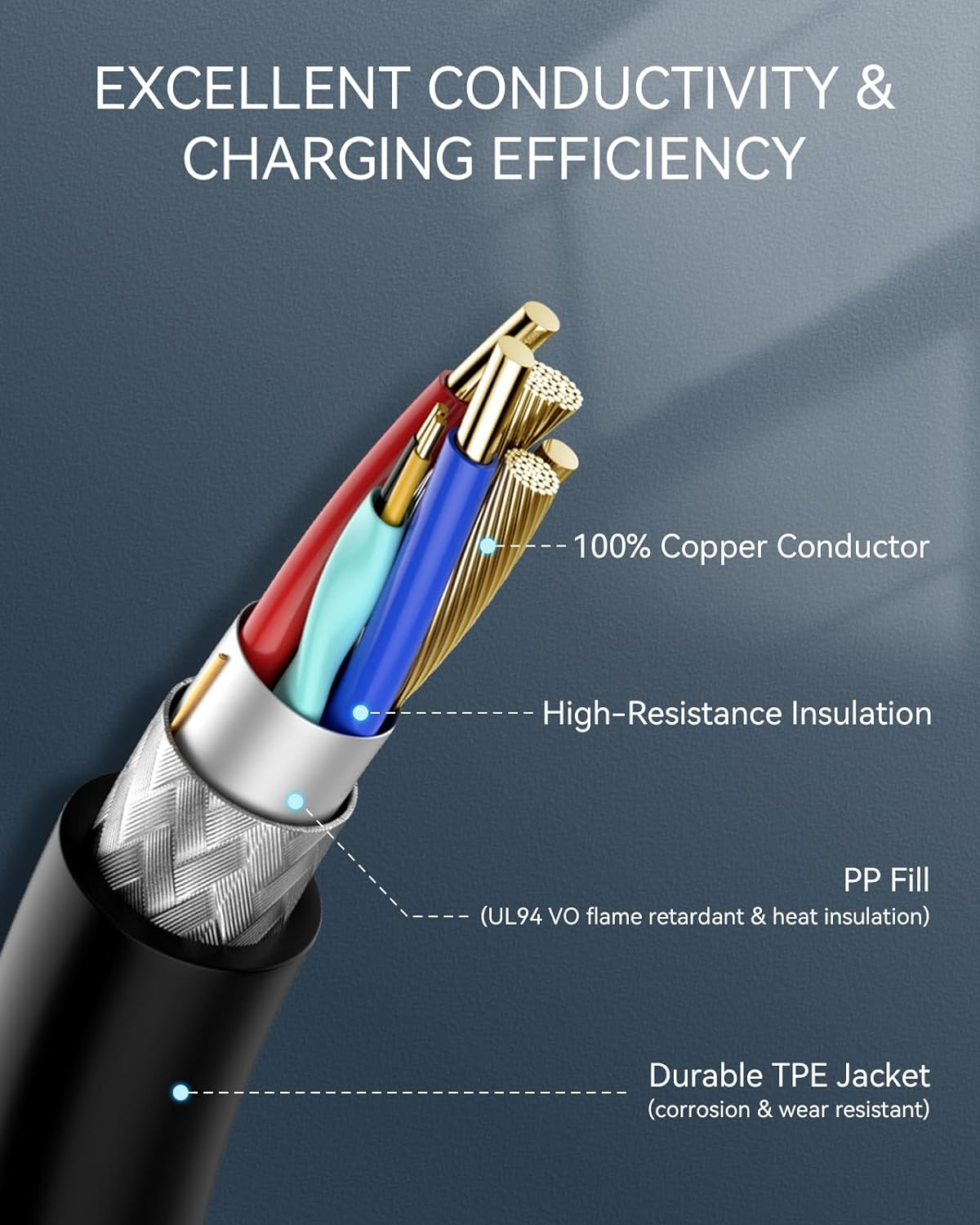

    Rated CurrentCable Specifications
    32A3 X 10AWG + 1 X 18AWG
    50A2 X 8AWG + 1 X 10AWG + 2 X 16AWG
    80A2 X 5AWG + 1 X 8AWG + 6 X 20AWG
