    CCS Combo 2 DC Fast Charging Connector 80A 150A 200A 300A 1000V IEC 62196 Type 2 DC Charge Connector/Socket

    Ask Lasest Price
    Brand Name : Evoyage
    Model Number : EVO-CCS2-S-150A
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

    CCS Combo 2 DC Fast Charging Connector 80A 150A 200A 300A 1000V IEC 62196 Type 2 DC Charge Connector/Socket

    CCS Combo 2 DC Fast Charging Connector 80A 150A 200A 300A 1000V IEC 62196 Type 2 DC Charge Connector/Socket CCS 2 Plug Quick Charging Station


    CCS Combo 2 DC Fast Charging Connector 150A 200A EV Quick Charging Plug CCS Type 2 DC

    Model selection and the standard wiring

    Rated current:80/150/200/250/300A

    150Amp 2 X 50mm²+1 X 25mm² +6 X 0.75mm²

    Rated voltage:1000V DC
    Operation Temp:-30℃ ~ + 50℃
    IP protection class:IP 55
    Product description:This CCS Combo 2 charging connector meets the European standards, can be used on the DC charging station to charge the electric vehicles with CCS Combo 2 Sockets.

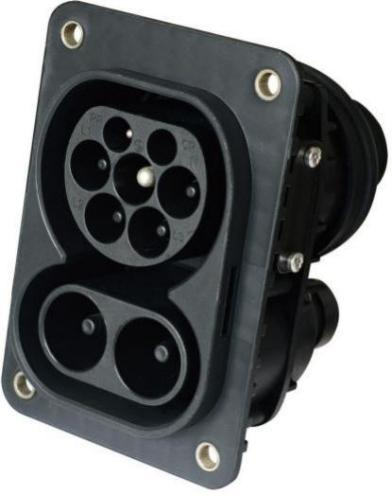

    DC 150A 200A CCS Combo 2 Socket CCS 2 Inlets/Socket for Vehicle Side

    Model selection and the standard wiring

    Rated current:80/150/200/250/300A

    150Amp 2 X 50mm²+1 X 25mm² +6 X 0.75mm²

    Rated voltage:1000V
    Operation Temp:-30℃ ~ + 50℃

    IP protection class:IP 55
    Product description:This CCS2 inlet charging socket meet the EU standardS. the CCS2 charging socket can install on the CCS2 electric cars as a power inlet

    CCS Combo 2 DC Charging Plug Features

    • This 200A CCS2 DC Charging connector is CE, TUV,CB,UCKA certificated. is safe and reliable.
    • This 200A DC EV Charging Connector is equipped with various built-in safety mechanisms to protect electric vehicles and charging infrastructure.
    • With safe pin design to prevent electric shock by accidental touch.
    • This CCS2 charging connector can be installed on the DC EV fast charing station as an electric outlet to charge the electric vehicles.

    CCS Combo 2 DC Charging Socket Features

    • The CCS2 charging socket with TUV CE RHOS certificates, it is safe and reliable.
    • This CCS2 charging socket is installed on the electric cars as an electric inlet for DC charging.
    • The CCS2 chargersocket with safty pins insulated head design to prevent accidental dirrect contact with staff.
    • The CCS Type 2 charging socket can install on electirc cars, then you can use the ccs charging gun to charging the EV.

    Product Type

    Connector Type:/PlugPower Phase:
    Rated TypeDCShell Material:Themoplastic
    Color:Black/WhiteContact Material:Copper Alloy
    Contact Finish:Silver PlatingApplication:Vehicle End
    Mounting Type:Cable MountWire Gauge:2X50mm²+1X 25mm²+ 6 X 0.75mm²

    Electrical

    Rated Current:80//200/250/300ARated Voltage1000V
    Contact Resistance:0.5MΩ MAXInsulation Resistance:
    Power:65KWWithstand Voltage3200V

    Standards and Specifications

    Charging Standards:IEC 62196-3

    Environmental

    FlammabilityUL94 V-0Ingress Protection:IP54
    Operating Temperature:-30℃~50℃

    Mechanical

    Mating Cycles:≥10000
