    380V 3 Phase Input Portable DC Fast Charger 15KW / 20KW Mobile EV Charging Station

    Ask Lasest Price
    Brand Name : Evoyage
    Model Number : EV7PA
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

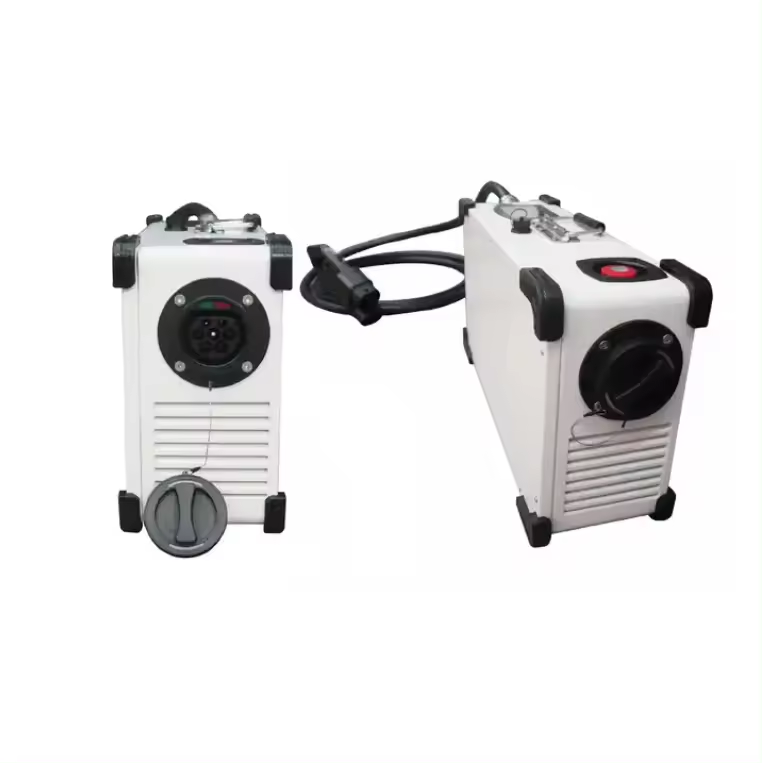

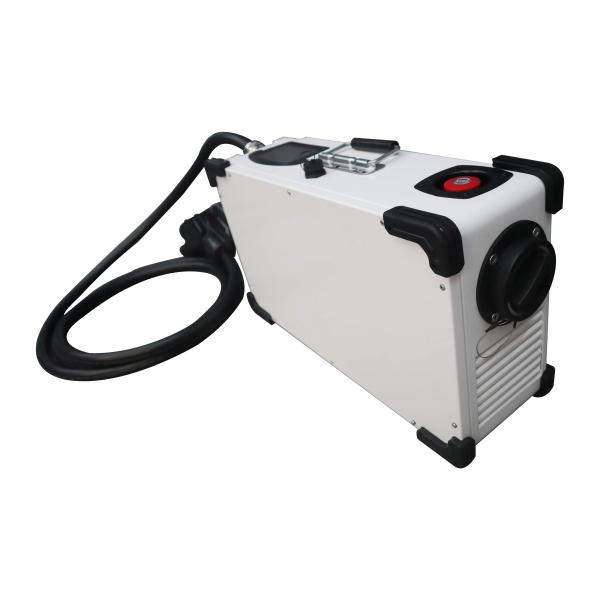

    380V 3 Phase Input Portable DC Fast Charger 15KW / 20KW Mobile EV Charging Station

    380V CCS/Tesla/CHAdeMO/GBT Charging Station 15KW/20KW Portable EV Fast DC Charger


    Portable EV Charger CCS CHAdeMO EV Charger Station 15KW/20KW Fast DC Charger

    Portable DC Quick Charger FEATURES:

    Input Rating:380V AC± 15%

    Compatible Universality

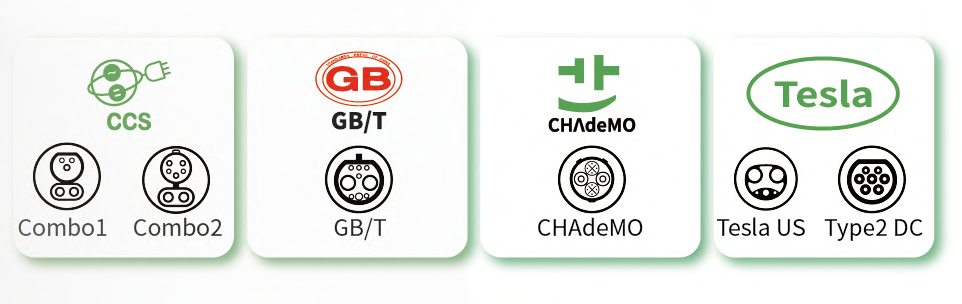

    • It has CCS,CHAdeMO,GB/T,Tesla versionsinput via type2 or 3-phase power supply
    Rated voltage:DC 380V

    High quality electrical components

    • USB for firmware update and RJ45 port for internet connect(optional).
    Power Factor:>0.99 full load
    TFT-LCD Touch Panel:4.3' touch display

    The 20KW DC Portable Charger Has CCS Combo, CHAdeMO, GB/T And Tesla Versions, It’s Input Is Type2, CEE32 Industrial Plug Or 3 Phase Power Supply.It Is CE And ROHS Certified.It Has IP54 Level Of Water Proof(Placed As Picture), You Can Use It Outdoor Securely.

    Compatible Universality

    • Can change setting via touch display freely.
    Certifications:CE,ROHS

    High quality electrical components

    • CE and ROHS Certificate,we are members of CHADEMO Association.

    DC portable Charger Features

    Description :

    This Charger Is Comes With A IEC Type2 Socket, This Very Common Plug Is Often Used By AC, Charging Station (3P) Welders, And Other Industrial Equipment. And The Outlet DC Plug Can Be Combo 1 & 2, CHAdeMO, GB/T Or Tesla.
    • 380V, 3-phase input voltage.
    • Adjustable ouotput KW, 15KW or 20KW, relevant Ampere 37.5A and 50A.
    • 5 Inches touch display, can change settings via the screen freely.
    • USB for firmware update and RJ45 port for internet connect.
    • DC adapters let every plug become flexible (DC connectors Ccs and CHAdeMO/AC connector Type 2) to 100% for Utilization rate.
    • Can change setting via touch display freely.
    • Warranty:1 year
    380V 3 Phase Input Portable DC Fast Charger 15KW / 20KW Mobile EV Charging Station

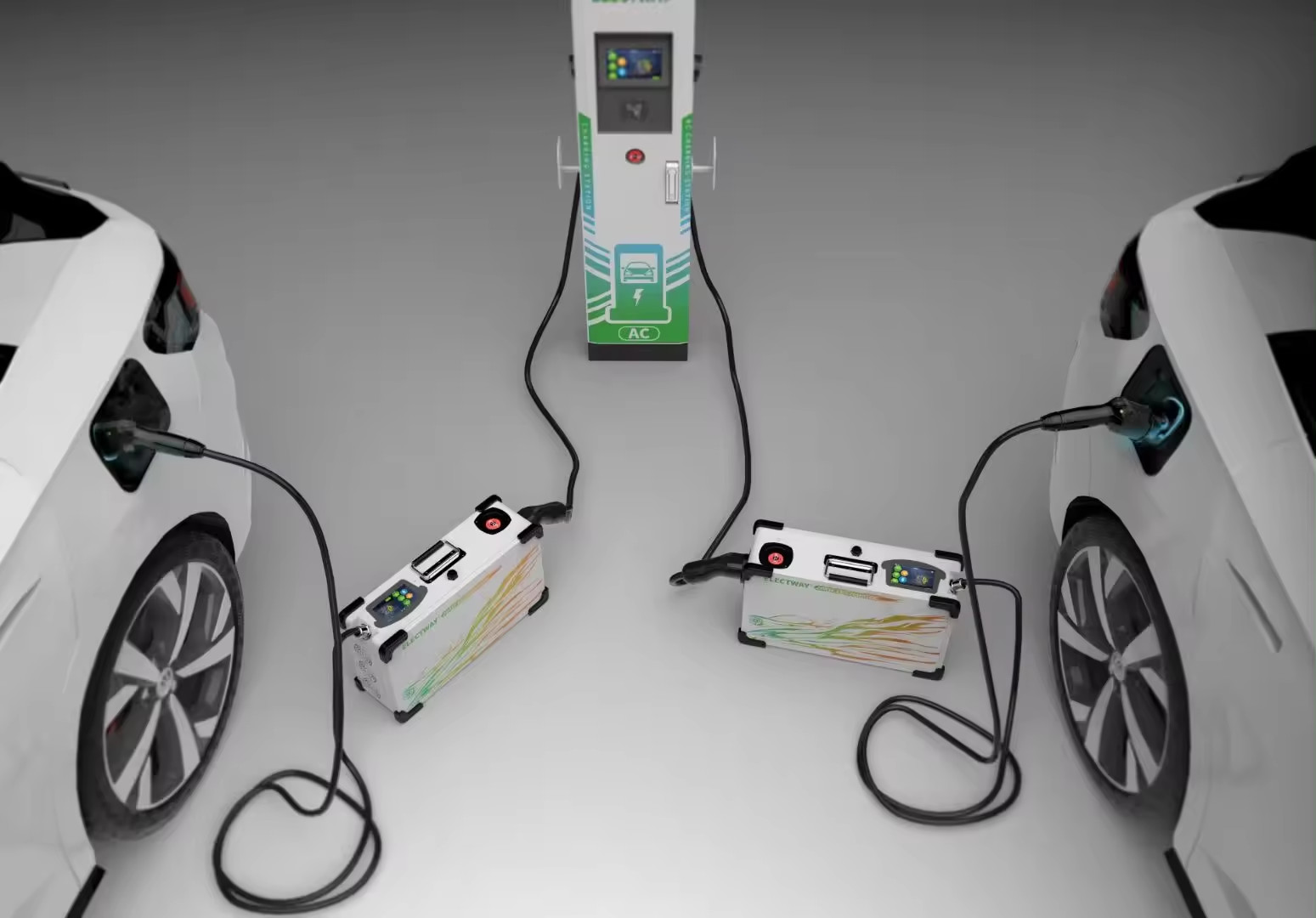

    Portable fast charger is an economic and time efficient solution for fast charging all DC electric vehicles (EVs)

    • Fast charging station is one type of charging method which can charge battery of electric vehicle (EV) in not over an hour. It can supply rapidly electric power to charge EV like gasoline pump station for internal combustion engine car. So it will be most popular charging station for EV customer in the future.
    • APPLICATION:

      Small and medium-sized enterprises
      Taxi/Uber fleet operators
      Vehicle manufacturers
      Automotive workshops

    CCSBMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
    CHAdeMONissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
    GB/TBYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
    TeslaTesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.
    Model15KW20KW
    Ac inputRated input voltage:380VAC±10% or 300~750VDC
    AC Input Connection:L1+L2+L3+N+PEor DC+,DC
    Max.input Current:32A /380VAC30A /750VDC
    Frequency:50/60 Hz
    Power Factor:>0.99 full load
    Efficiency:95%
    Dc inputOutput voltage range:50~500Vdc(CHAdeMo),150~750Vdc(CCS),48~450Vdc(GB/T)
    Max.Output power:15 kW20kW
    Max.Output current:40A /375V50A /400V
    User interfaceTFT-LCD Touch Panel:5'touch display
    Push Button:mergency Stop
    Interface:USB,RJ45(optional)
    PackageDimension:550*310*160mm
    Weight:36kg36kg



    Environmental
    Operating temperature:-20℃~+50℃,power derating from+50℃ and above
    Humidness:5%~90%RH,non-condensing
    Altitude:2000m
    IP level:IP54
    MachineCable length:5M(CHAdeMO),5M(CCS),and 5M(GB/T),the cable length can be customized
    RegulationRegulation:EN62196-3
    Certifi catior:CE,ROHS
    Charging protocol:CHAdeMO 2.0/DIN 70121/SO5118/Tesla/GBT27930-2015
