Portable EV Charger CCS/Tesla/CHAdeMO/GBT EV Charger Station 30KW/45KW/60KW Portable EV DC Charger DC Fast Charger
 | Portable EV Charger CCS CHAdeMO EV Charger Station 30KW/45KW/60KW Fast DC Charger
This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers. | Mobile type DC Quick Charger FEATURES:
|
|---|
DC portable Charger FeaturesThe 60kw portable quick-charger was developed for electric vehicles with CHADEMO or CCS Combo DC charging sockets and is designed for semi-mobile use.It is compatible with all popular industrial sockets and can be used with CEE63 plug sockets. The charger is flexible in use thanks to its compact dimensions and is especially suitable for use with vehicle pools,in workshops or at motoring events. | Description :
|
|---|

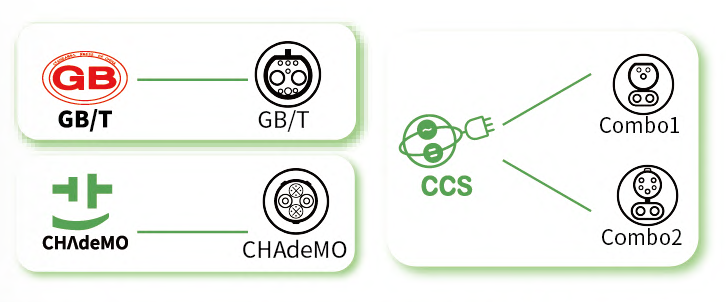

| CCS | BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus. |
| CHAdeMO | Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter) |
| GB/T | BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc. |
| Tesla | Tesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3. |
| Model | 30KW | 45KW | 60KW | |||||
| Ac input | Input Rating | 380V±15% | ||||||
| ACInput Connection | L3+N+PE,Wye connection | |||||||
| Max.input Current | 50 A | 70A | 100 A@380V | |||||
| Frequency | 50/60 Hz | |||||||
| Power Factor | >0.99 @full load | |||||||
| Efficiency | 95% | |||||||
| Dc input | Output voltage range | 200-750VDC | ||||||
| Max.Output power | 30 kW | 45kW | 60 kW | |||||
| Max.Output current | 75A@400V | 90A @500V | 150A@400V,120A@500V,8OA@750V | |||||
| User interface | TETICD Touch Pane | 5'touch display | ||||||
| Push Button | Emergency Stop | |||||||
| Interface | USB,RJ45 | |||||||
| Package | Dimension | 685*600*480mm | ||||||
| Weight | 90kg | 100kg | 110kg | |||||
Environmental | Operating temperature | -20℃~+50℃,power derating from+50℃ and above | ||||||
| Humidness | 5%~90%RH,non-condensing | |||||||
| Altitude | 2000m | |||||||
| IP leve | IP54 | |||||||
| Machine | Cable length | 5M(CHAdeMO),5M(CCS),5M(GB/T)Customized acceptable | ||||||
| Regulation | Regulation | EN61851-1 | ||||||
| Certifi catior | CE,ROHS | |||||||
| Charging protocol | CHAdeMO 20/DIN 70121/1S015118/1EC61851-23EC61851-24 | |||||||
|
|
