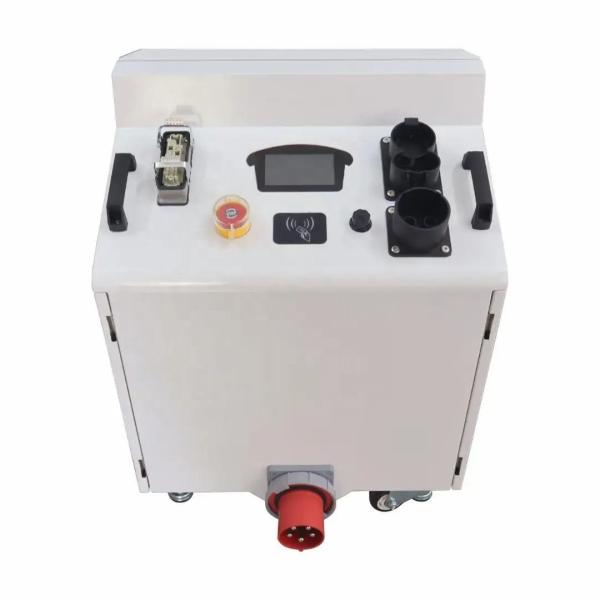

    30KW / 45KW / 60KW EV Fast Charging Station Portable EV DC Charging Station ROHS

    Ask Lasest Price
    Brand Name : Evoyage
    Model Number : EVCCS12AD
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

    30KW / 45KW / 60KW EV Fast Charging Station Portable EV DC Charging Station ROHS


    Portable dC EV Charger CCS/Tesla/CHAdeMO/GBT EV Charger Station 30KW/45KW/60KW EV DC Charger For fast charging


    30KW / 45KW / 60KW EV Fast Charging Station Portable EV DC Charging Station ROHS

    Portable EV Charger CCS CHAdeMO EV Charger Station 30KW/45KW/60KW Fast DC Charger

    Mobile ype DC Quick Charger

    FEATURES:

    Input Rating:380V AC± 15%
    • It is supporting ccs and CHAdeMO only byreplace the cable.
    Rated voltage:DC 200-750V
    • USB for firmware update and RJ45 port for internet connect(optional).
    Power Factor:0.99 full load
    TFT-LCD Touch Panel:5' touch display

    This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

    • Open door design, it is convenient to replacepower module.
    Certifications:CE ,ROHS

    Product Description :
    • Best backup charger supply on the race track,in a tow truck,in a SUV,trailer or anywhere you need power.
    • Support different charging plug standard (CCS/Tesla/CHAdeMO/GBT)by replace the cable
    • CE/ROHS certification .
    • 7Inch touch screen is convenient to change the setting .
    • IP54 rated for indoor /outdoor applications.
    • Provide customized configuration.
    • compact and lightweight design,easy to use.

    DC portable Charger Features

    Bring the charger to the vehicle with EVSE's mobile Ev charging stations. A mobile altemative to stationary Dc fast chargers, the EVSE seriesfom EVSE delivers Dc fast charging to any Dc-compatible electric vehicle on the market via cHAdeM0, ccs (Combined Charging System) genuinely portable Ev charging solution with ow weight and compact design can be deploved auicky and efficiently to meet arowing charoingdemand without instalina additional fixed charaing equipment.


    The mobile DC fast chargers are ideal for various applications and enable fleet operators, auto dealers,event planners, and other businesses to turnany three:phase outlet into a Dc fast charging staion, in environments with a high number of EVs bringing the charger to the vehicle can save anincredible amount of time compared to moving cars around to accommodate a stationary charger.It is compatible with all popular industrial sockets and can be used with CEE63 plug sockets.A truly flexible solution with hot-swappable chargingcables, broad supply input.

    CCSBMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
    CHAdeMONissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
    GB/TBYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
    TeslaTesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.
    Model30KW45KW60KW
    Ac inputInput Rating:380V±15%
    ACInput Connection:L3+N+PE,Wye connection
    Max.input Current:50 A70A100 A/380V
    Frequency:50/60 Hz
    Power Factor:>0.99 /full load
    Efficiency:95%
    Dc inputOutput voltage range:200-750VDC
    Max.Output power:30 kW45kW60 kW
    Max.Output current:75A/400V90A /500V150A/400V,120A/500V,8OA/750V
    User interfaceTETICD Touch Pane:5'touch display
    Push Button:Emergency Stop
    Interface:USB,RJ45
    PackageDimension:685*600*480mm
    Weight:90kg100kg110kg



    Environmental
    Operating temperature:-20℃~+50℃,power derating from+50℃ and above
    Humidness:5%~90%RH,non-condensing
    Altitude:2000m
    IP leve:IP54
    MachineCable length:5M(CHAdeMO),5M(CCS),5M(GB/T)Customized acceptable
    RegulationRegulation:EN61851-1
    Certifications:CE,ROHS
    Charging protocol:CHAdeMO 20/DIN 70121/1S015118/1EC61851-23EC61851-24
