    20KW 30KW 40KW 60KW 380V GBT CCS1 CHAdeMO CCS2 Connector Double Single Gun Fast DC EV Charging Station with OCPP

    Ask Lasest Price
    Brand Name : Sixpence
    Model Number : EVCCS12AD
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

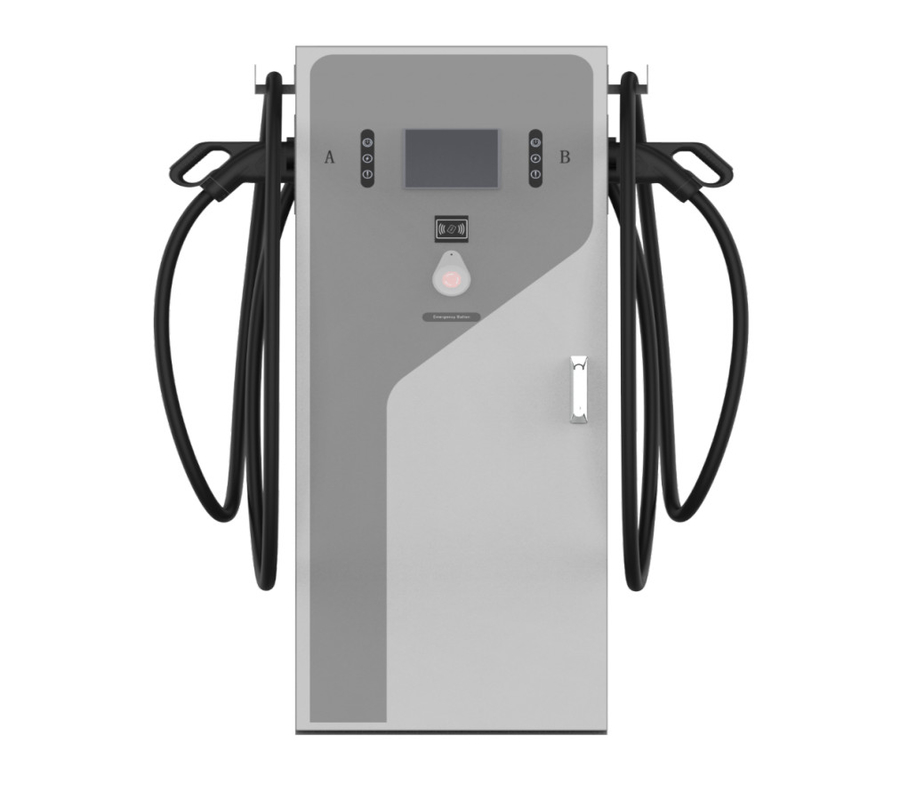

    20KW 30KW 40KW 60KW 380V GBT CCS1 CHAdeMO CCS2 Connector Double Single Gun Fast DC EV Charging Station with OCPP

    20KW 30KW 40KW 60KW 380V GBT CCS1 CHAdeMO CCS2 Connector Double Single Gun Fast DC EV Charging Station With OCPP


    DC charger station 20KW 30KW 40KW 60KW Fast DC Charger

    FEATURES:

    Input Rating:380V AC± 15%

    Compatible Universality

    • One charger with multiple outputs, simultaneously charging
    • One/Two DC connectors: GBT CCS1 CHAdeMO CCS2 , with output up 20 KW to 60KW
    Rated voltage:DC 380V

    High quality electrical components

    • Verify by CE and TUV
    • IP54 and lK10 corrosion protection
    Singel gun max output power range:60KW
    Display screen:7inch touch display

    DC 20/30/40/60KW Charger Is Designed For Various Short-Time Parking Scenes, Such As Shopping Malls,Parking Lots, Hotels, Tourist Attractions, Etc.Lt Is A Quick Charging Station Able To Charge All
    Compatible Electric Vehicles.Users Only Need To Plug The Charging Connect To The Vehicle And DC Charger,It Will Immediately Start The Charging Process.

    Our Public EV Charger (Dual Plug) is designed for businesses to install at public locations. It provides two Type 2 connectors for simultaneous charging of two EVs. The compact size takes up minimal space while the durable enclosure allows for indoor or outdoor installation. Dynamic load balancing automatically adjusts power between ports.

    Certifications:CE,ROHS,TUV,CSA,UL,IEC

    High quality electrical components

    • Verify by CE and TUV
    • IP54


    Wall mounted DC and AC multiple charger station Features

    Description :

    • Installation Support:
      We provide full support throughout the installation process including site evaluations, recommended equipment, electrical requirements, permitting, and maintenance needs. We want to ensure your ev charging station is set up for succes
    • Payment and Access Control:
      Our public ev charger supports multiple payment systems including pay-by-app, RFID card readers, and credit card readers. You can set automated pricing, customize charging rates, and view detailed session reports. RFID or apps control access to authorized users only.
    • Custom Branding:
      Our mini public EV charger allows for extensive custom branding options so you can advertise your business. Custom vinyl wraps, laser-cut acrylic face plates, and free standing signage help attract customers and highlight your brand.
    • Reliable and Durable:
      Built to withstand the elements, our commercial ev charger is housed in a rugged, weatherproof NEMA 4 rated enclosure. The commercial-grade components deliver reliable charging through extreme cold, heat, humidity and more. Quickly install it anywhere – wall, pedestal or floor mount.
    • Charging Cables:
      Each dual-plug charger comes standard with two 5m/7m/8m cable
    • Networking and Management :
      Our EVSE connects through cellular, Ethernet, or WiFi for remote monitoring, access control, and payment processing integrations. Real-time notifications alert you of any issues. Use cloud software to view analytics, control pricing, and manage settings from anywhere.
    • Warranty:1 year

    Model

    20KW 30KW 40KW 60KW Fast DC Charger

    AC Nominal InputPhases/Lines3 phase+neutral +PE
    Voltage304~456V AC
    Frequency45-65Hz
    OutputPower60kW
    connectorCCS2+CCS2CCS2+GBTCCS2+CCS1CCS2+CHAdeMO
    Voltage50VDC-1000VDC
    MAX Current180A+180A180A+180A180A+180A180A+125A
    Cable Length5m
    Electrical ParameterPower Factor≥0.99
    THD Value≤5%
    Stable Voltage
    Accuracy    		≤±0.5%
    Stable Current
    Accuracy    		≤±1%
    Efficiency≥94%
    Structure DesigrModule Number2*30kW
    nstallation MethodVertical installation of ground
    LED IndicatorGreen/Yellow/Red color for different states
    DisplayOne 7″Daylight readable Color Touch Screen
    Emergency Stop
    Button    		Yes
    Payment MethodRFID Card/Phone APP with backend
    CommunicationCharger v.s.BackendEthenet/GPRS/4G communication
    Communication
    Protocol    		OCPP1.6J
    Environmental indexOperating
    Temperature    		-20℃~+55℃
    Working Humidity5%～95%no condensation
    Working Altitude≤2000m
    Protection GradeIP54
    Application SiteIndoor/Outdoor
    Cooling MethodThe fan cooling
    Security ProtectionMultiple ProtectionOver/Under voltage protection,
    Overload protection,Short circuit protection,Over/Under temperature protection,
    Grounding protection,Surge protection,
    Leakage protection
    Warranty12 months
    Package InformationProduct
    Dimension(W*D*H)    		630*250*1650mm
    Gross Weight170kg
    Extemal PackingWooden case

    CCSBMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
    CHAdeMONissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
    GB/TBYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
    TeslaTesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.

    Suitable Charging Locations: The DC charging station is particularly suitable for the following locations and scenarios:
    a. Urban public charging stations: The charging station is ideal for urban areas, where it can serve a variety of vehicles such as buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, and more.
    b. Urban public charging power stations: It can be deployed in public charging power stations catering to private cars, commuter cars, and buses, offering convenient charging options for a wide range of vehicles.
    c. Parking lots and shopping malls: The charging station is suitable for installation in various parking lots, including those found in shopping malls, providing electric vehicle owners with charging facilities while they shop or park their cars.
    d. Power business places: It can be deployed in power business places, such as power service centers or charging hubs, offering charging options to electric vehicle owners in these locations.
    e. Inter-city highways road charging stations: The charging station is well-suited for installation at road charging stations along inter-city highways, allowing for fast charging during long-distance travel.
    f. Limited space deployment: The charging station is especially suitable for locations with limited space, as it can be wall-mounted or floor-mounted, making efficient use of available space.
