20KW Home Ev Dc Charger Station Fast Dc Charger Single Phase Electric Vehicle Charger

Ask Lasest Price
Brand Name :	Sixpence
Model Number :	EVCCS20D
Price :	Negotiable
Payment Terms :	T/T,L/C,Western Union,Paypal,Alipay,Cash
Supply Ability :	10000 Piece/Pieces per Week
Delivery Time :	7-15 Working days

Add to Cart

Product Details
Company Profile

20KW Home Ev Dc Charger Station Fast Dc Charger Single Phase Electric Vehicle Charger

20KW Home Use Ev Dc Charger Station Fast Dc Charger Single Phase Electric Vehicle Charger

20KW Home Ev Dc Charger Station Fast Dc Charger Single Phase Electric Vehicle Charger

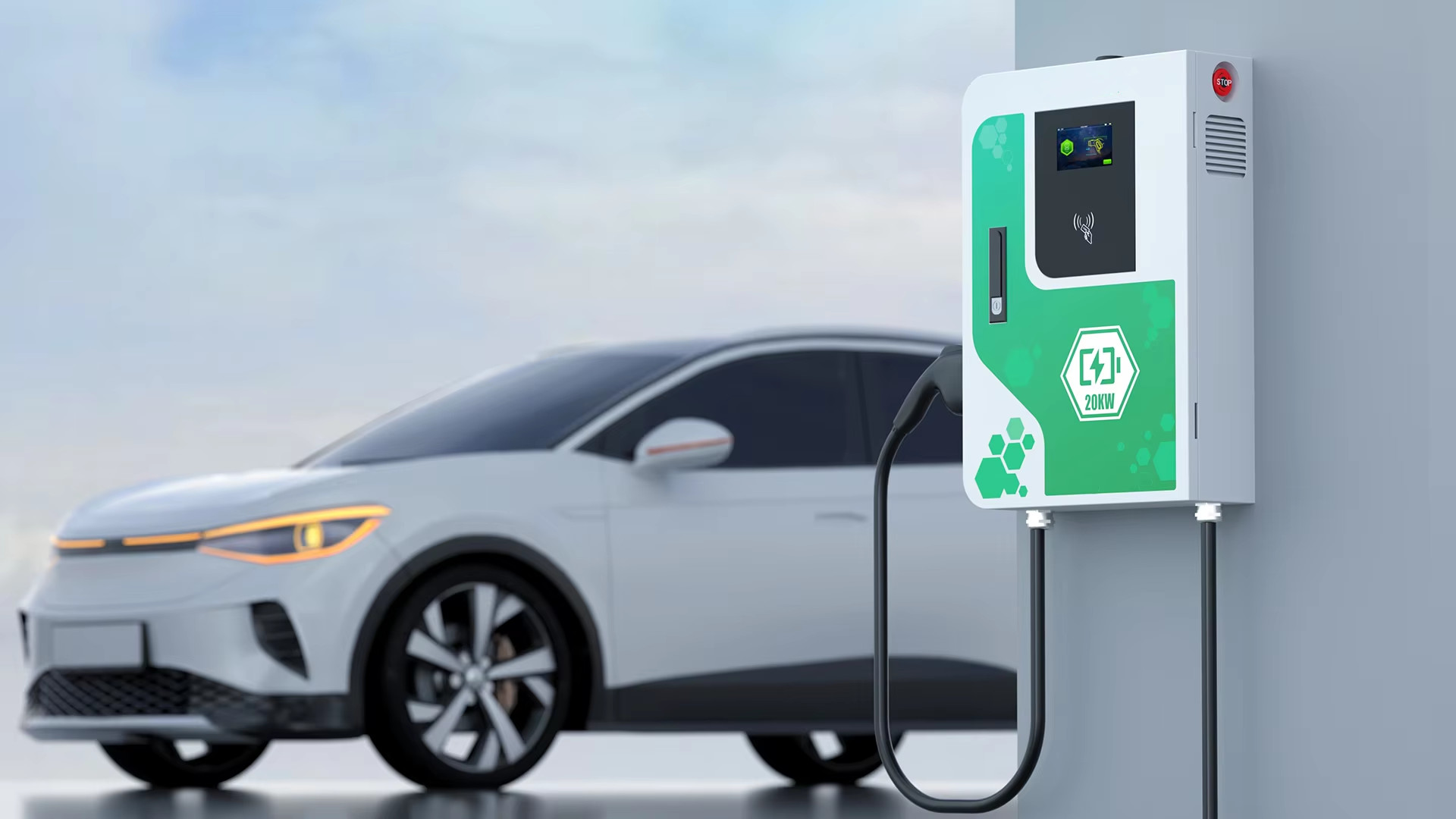

The 20 kW DC EV Charger is a high-powered charging solution designed to deliver fast and efficient charging for electric vehicles in US market.

Features:

1.Multiple output- CCS,CHAdeMO,GB/T,NACS

2."All-in-one" integrated design

3.Stationary IK10, IP54

4.5" touchscreen user interface

5.RFID reader

6.Ethernet, 4G and WIFI network connections

7.Firmware updates via OCPP1.6 or COPP2.0 remote connection

8.(Dynamic) Load balancing

Rated input voltage	220VAC±15%
Ac input	L1+N+PE(220V between Li and N)or L1+L2+PE(220V between Li and L2)
Power Factor	>0.99(APFC)
Efficiency	>95% at nominal output power
Frequency	50/60HZ
Output voltage range	200-750VDC
Max. Output current	50A Max
Max. Output power	20KW
Display screen	5’touch display(Android)
User authentication method	Credt Card,QR code,App(optional)
External	3/4G, WIFI,LAN
Outline	CANBus/RS485/RS232
Electrical isolation	Isolate between input and output
Cooling	Forced fan cooling
Output protection	Short circuit protection; OCP,OVP,LVP,OTP, residual current detection
Cable	CCS1,CCS2,CHAdeMO,GB/T, NACS
IP rate	IP54
User interface	7" LCD display touch screen
Backstage monitoring	OCPP1.6 JSON support
Based on the criteria	IEC 62196, IEC 61851, ISO/IEC 15118, DIN SPEC 70121-2014,

CCS	BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO	Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T	BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
Tesla	Tesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.

Suitable Charging Locations: The DC charging station is particularly suitable for the following locations and scenarios:

a. Urban public charging stations: The charging station is ideal for urban areas, where it can serve a variety of vehicles such as buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, and more.
b. Urban public charging power stations: It can be deployed in public charging power stations catering to private cars, commuter cars, and buses, offering convenient charging options for a wide range of vehicles.
c. Parking lots and shopping malls: The charging station is suitable for installation in various parking lots, including those found in shopping malls, providing electric vehicle owners with charging facilities while they shop or park their cars.
d. Power business places: It can be deployed in power business places, such as power service centers or charging hubs, offering charging options to electric vehicle owners in these locations.
e. Inter-city highways road charging stations: The charging station is well-suited for installation at road charging stations along inter-city highways, allowing for fast charging during long-distance travel.
f. Limited space deployment: The charging station is especially suitable for locations with limited space, as it can be wall-mounted or floor-mounted, making efficient use of available space.
