eMobility is the future! 10 years experiences of EV Charging Solution. Quality, Stable and reliable!
2 Years
| Ask Lasest Price | |
| Brand Name : | Sixpence |
| Model Number : | EVO60DC |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union, Paypal, Alipay, Cash |
| Supply Ability : | 10000 Piece/Pieces per Week |
| Delivery Time : | 7-15 Working days |

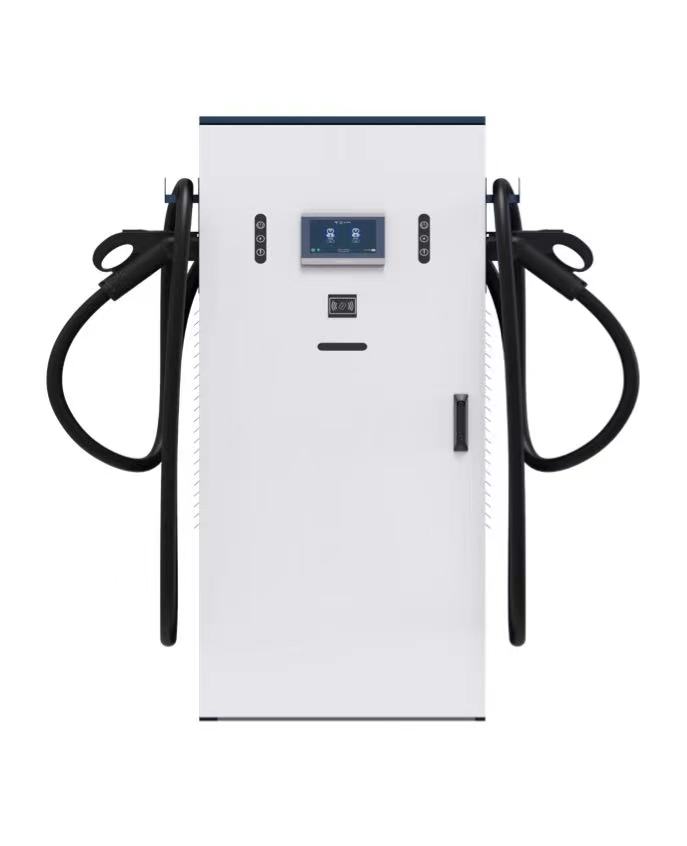

60KW 80KW 90KW 100KW 120KW 160KW GBT CCS1 CHAdeMO CCS2 Connector Double Gun Floor EV DC Charging Stations
DC charger station 60KW 80KW 100KW 120KW 160KW Fast DC Charger | FEATURES: |
| Input Rating:380V(-25%,+25%)AC | Compatible Universality
|
| Rated voltage:DC 380V | High quality electrical components
|
Display screen:7inch touch display | |
This model compatible with 20/30/40kW module,power range covers
60kW to 160kW. Designed For Various Short-Time Parking Scenes, Such As Shopping
Malls,Parking Lots, Hotels, Tourist Attractions, Etc.Lt Is A Quick
Charging Station Able To Charge All Compatible Electric Vehicles.Users Only Need To Plug The Charging Connect To The Vehicle And DC Charger,It Will Immediately Start The Charging Process. | Our Public EV Charger (Dual Plug) is designed for businesses to install at public locations. It provides two Type 2 connectors for simultaneous charging of two EVs. The compact size takes up minimal space while the durable enclosure allows for indoor or outdoor installation. Dynamic load balancing automatically adjusts power between ports. |
| Certifications:CE,ROHS,TUV,CSA,UL,IEC | High quality electrical components
|
Wall mounted DC and AC multiple charger station Features | Description : |
|
|
|
|
|
|
 |
|
| Specification | Model | 60KW 80KW 90KW 100KW 120KW 160KW Fast DC Charger | |||
| AC Nominal Input | Phases/Lines | 3 phase+neutral +PE | |||
| Voltage | 380V(-25%,+25%)AC | ||||
| Frequency | 50Hz±10% | ||||
| Output | Power | 60KW 80KW 90KW 100KW 120KW 160KW | |||
| connector | CCS2+CCS2 | CCS2+GBT | CCS2+CCS1 | CCS2+CHAdeMO | |
| Voltage | 50VDC-1000VDC | ||||
| MAX Current | 180A+180A | 180A+180A | 180A+180A | 180A+125A | |
| Cable Length | 5m/7m/8m | ||||
| Electrical Parameter | Power Factor | ≥0.99 | |||
| THD Value | ≤5% | ||||
| Stable Voltage Accuracy | ≤±0.5% | ||||
| Stable Current Accuracy | ≤±1% | ||||
Overall efficiency | ≥94% | ||||
| Structure Desigr | Module Number | 2*30kW/2*40KW/2*50KW/2*60KW/2*80KW | |||
| nstallation Method | Vertical installation of ground | ||||
| LED Indicator | Green/Yellow/Red color for different states | ||||
| Display | One 7″Daylight readable Color Touch Screen | ||||
| Emergency Stop Button | Yes | ||||
| Payment Method | RFID Card/Phone APP with backend | ||||
| Communication | Charger v.s.Backend | Ethenet/GPRS/4G communication | |||
| Communication Protocol | OCPP1.6J | ||||
| Environmental index | Operating Temperature | -35℃~+55℃ | |||
| Working Humidity | 5%～95%no condensation | ||||
| Working Altitude | ≤2000m | ||||
| Protection Grade | IP54 | ||||
| Application Site | Indoor/Outdoor | ||||
| Cooling Method | The fan cooling | ||||
| Security Protection | Multiple Protection | Over/Under voltage protection, | |||
| Overload protection,Short circuit protection,Over/Under temperature protection, | |||||
| Grounding protection,Surge protection, | |||||
| Leakage protection | |||||
| Warranty | 12 months | ||||
| Package Information | Product Dimension(W*D*H) | 700*400*1870mm | |||
| CCS | BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus. |
| CHAdeMO | Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter) |
| GB/T | BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc. |
Suitable Charging Locations: The DC charging station is
particularly suitable for the following locations and scenarios:
a. Urban public charging stations: The charging station is ideal for urban areas, where it can serve
a variety of vehicles such as buses, taxis, official vehicles,
sanitation vehicles, logistics vehicles, and more.
b. Urban public charging power stations: It can be deployed in public charging power stations catering to
private cars, commuter cars, and buses, offering convenient
charging options for a wide range of vehicles.
c. Parking lots and shopping malls: The charging station is suitable for installation in various parking
lots, including those found in shopping malls, providing electric
vehicle owners with charging facilities while they shop or park
their cars.
d. Power business places: It can be deployed in power business places, such as power service
centers or charging hubs, offering charging options to electric
vehicle owners in these locations.
e. Inter-city highways road charging stations: The charging station is well-suited for installation at road
charging stations along inter-city highways, allowing for fast
charging during long-distance travel.
f. Limited space deployment: The charging station is especially suitable for locations with
limited space, as it can be wall-mounted or floor-mounted, making
efficient use of available space.
|
|
