Portable CCS2 DC Charging Station Test Device EVSE Analyzer EV Simulator DC Charging Station Test System

Product Categories

Chengdu Sixpence Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	Sixpenceev
Model Number :	EV7PA
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100 Piece/Pieces per Week

Add to Cart

The DC Charging station test system is mainly used for online debugging, offline

detection, aging test and Functional verification of European standard electric vehicle DC

Charging station. This series of test systems strictly refer to IEC61851-1, IEC61851-23,

IEC61851-24, and SAEJ1772-2017 to simulate the charging process and various faults of the

real vehicle, so as to avoid problems such as inconvenient use of the test, incomplete test

content, and inability to simulate real faults caused by the use of the real vehicle as the

detection device, and to avoid damage to the test vehicle caused by the fault of the Charging

station. This testing system can measure charging voltage, current, and power;

Interoperability testing; Test CP and PP guidance signals, and simulate leakage faults. The

above parameters are displayed through a large touch screen for easy observation and

operation

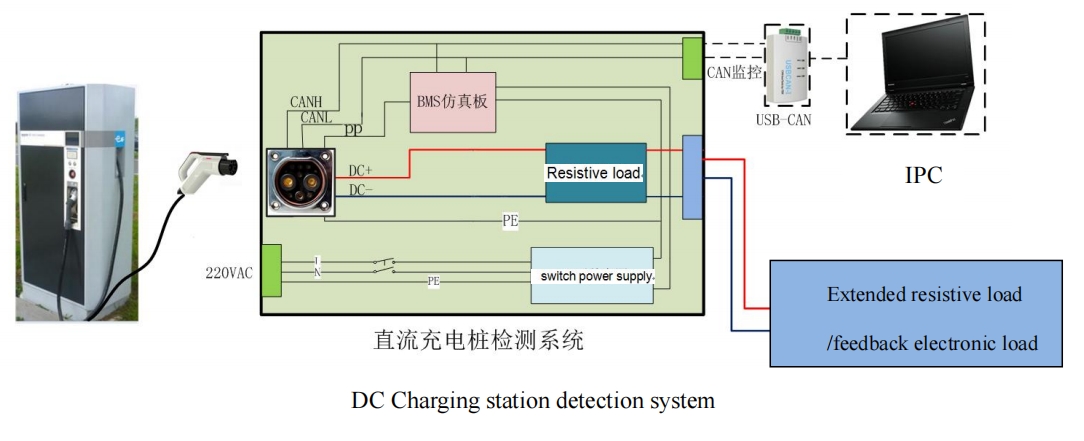

The internal structure and application diagram of the testing system are shown in Figure

1. The test system consists of charging interface, detection control board, touch screen,

resistive load, Computer fan and other parts. Insert the DC charging gun into the test system

to conduct the function test of the DC Charging station
